| Reset |
Type
|
外部尺寸
|
標稱頻率
|
負載電容
|
頻差
|
諧振電阻
|
激勵功率
|
工作溫度
|
綠色產品
|
|
|---|---|---|---|---|---|---|---|---|---|---|
 |

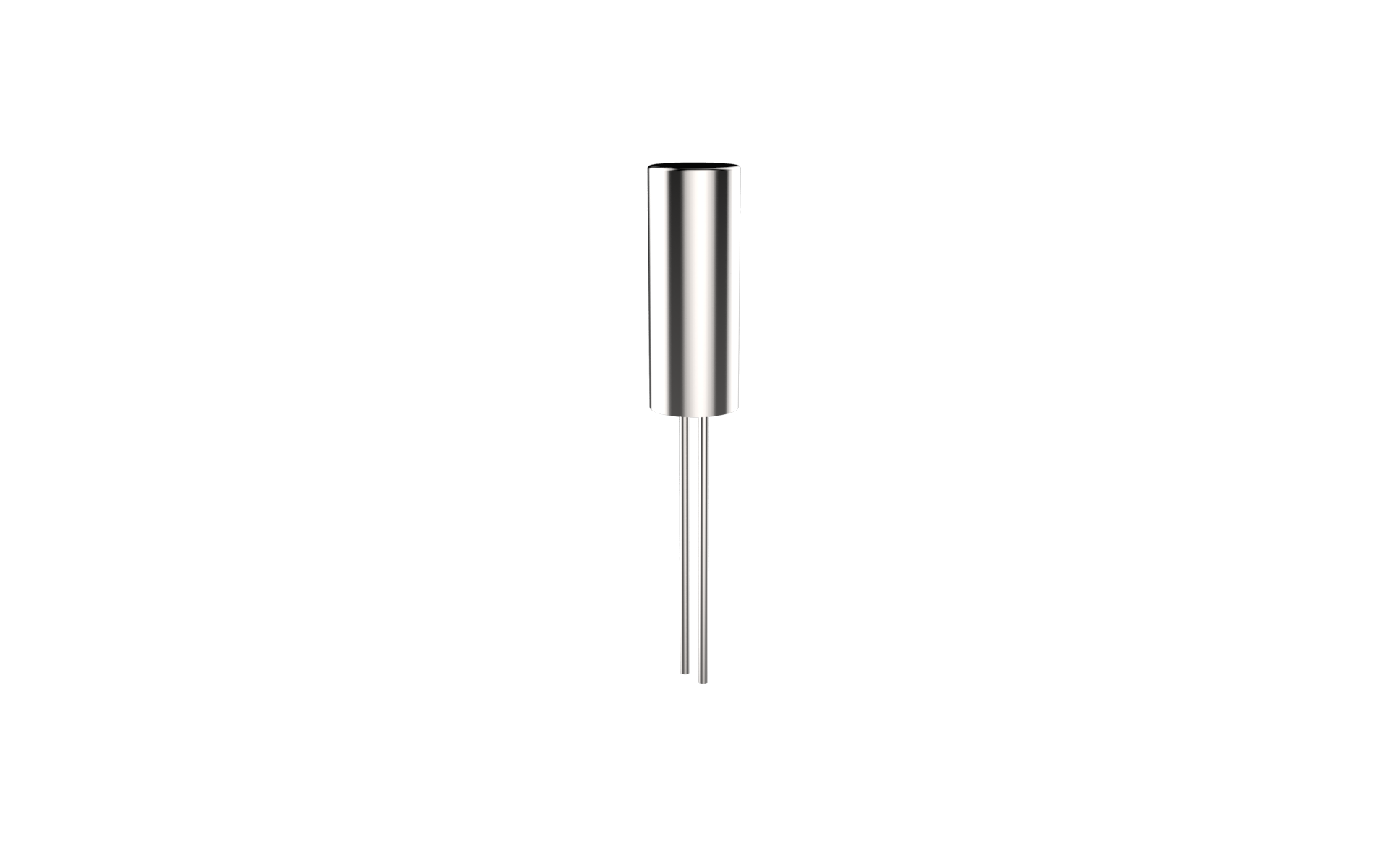

圓柱晶振 | 2×6 / 3×8 / 3×9 | 3.579MHz~50MHz | 20pF | 30ppm | 80Ω | 50uW | -20~+70℃ | RoHS Compliant | |
 |
UM-1 | 7.8×3.2×6.9 | 4MHz~200MHz | 20pF | 30ppm | 80Ω | 100uW | -20~+70℃ | RoHS Compliant | |
 |

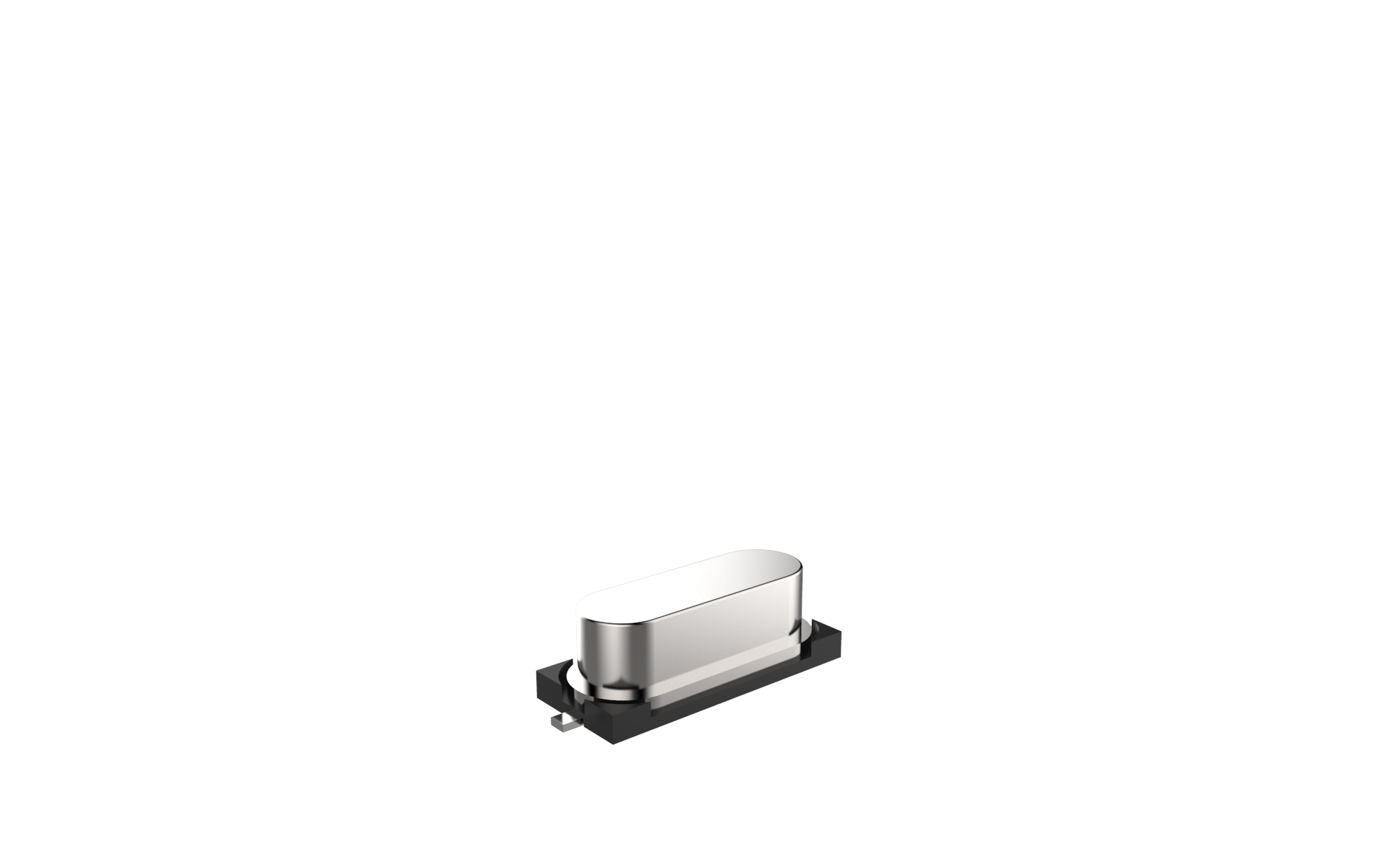

HC-49 SMD | 13×4.8×4 /3 | 3MHz~100MHz | 20pF | 30ppm | 80Ω | 100uW | -40~+85℃ | RoHS Compliant | |
 |

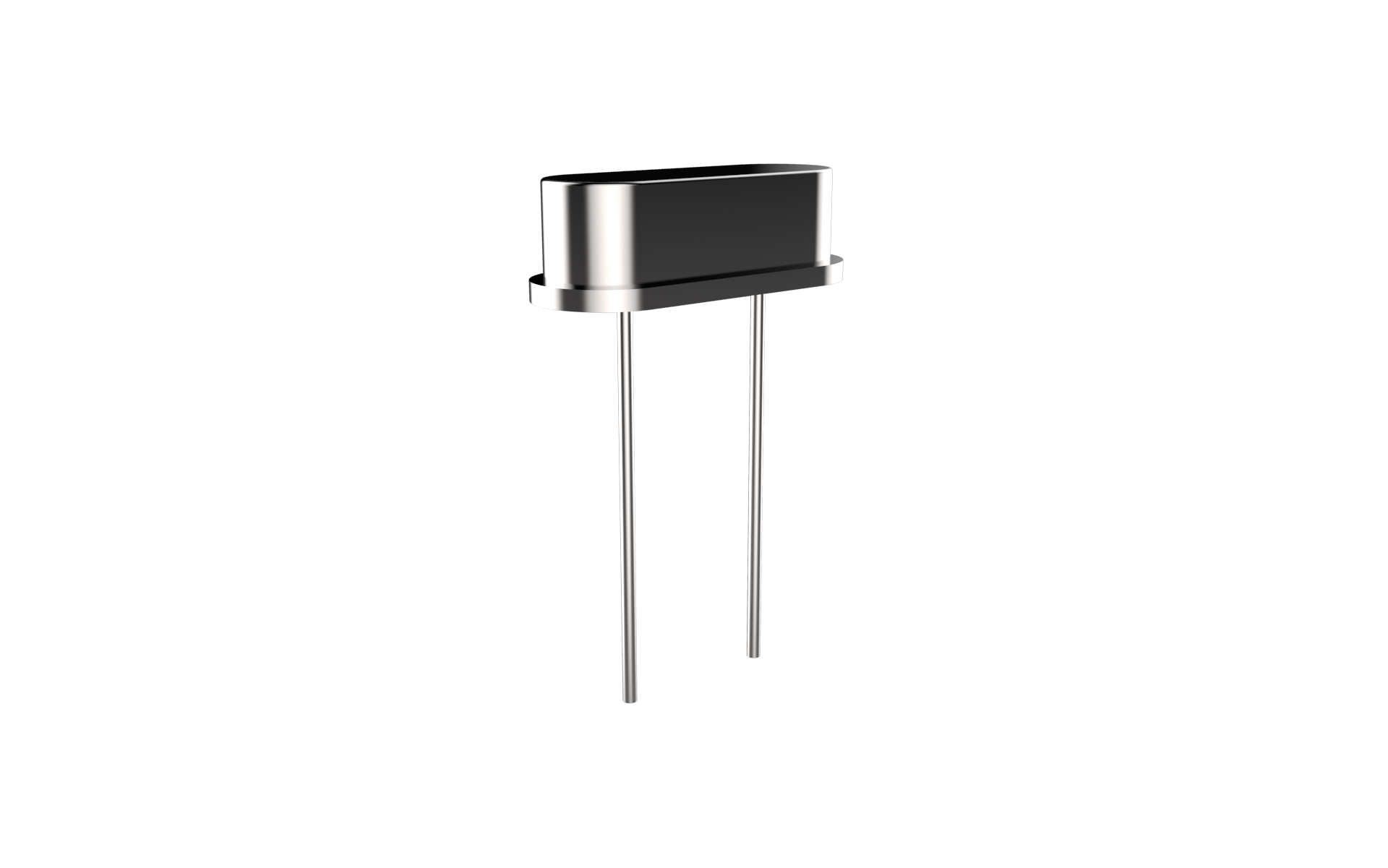

HC-49S | 10.5×3.5×3.8 | 3MHz~100MHz | 20pF | 30ppm | 80Ω | 100uW | -20~+70℃ | RoHS Compliant | |
 |

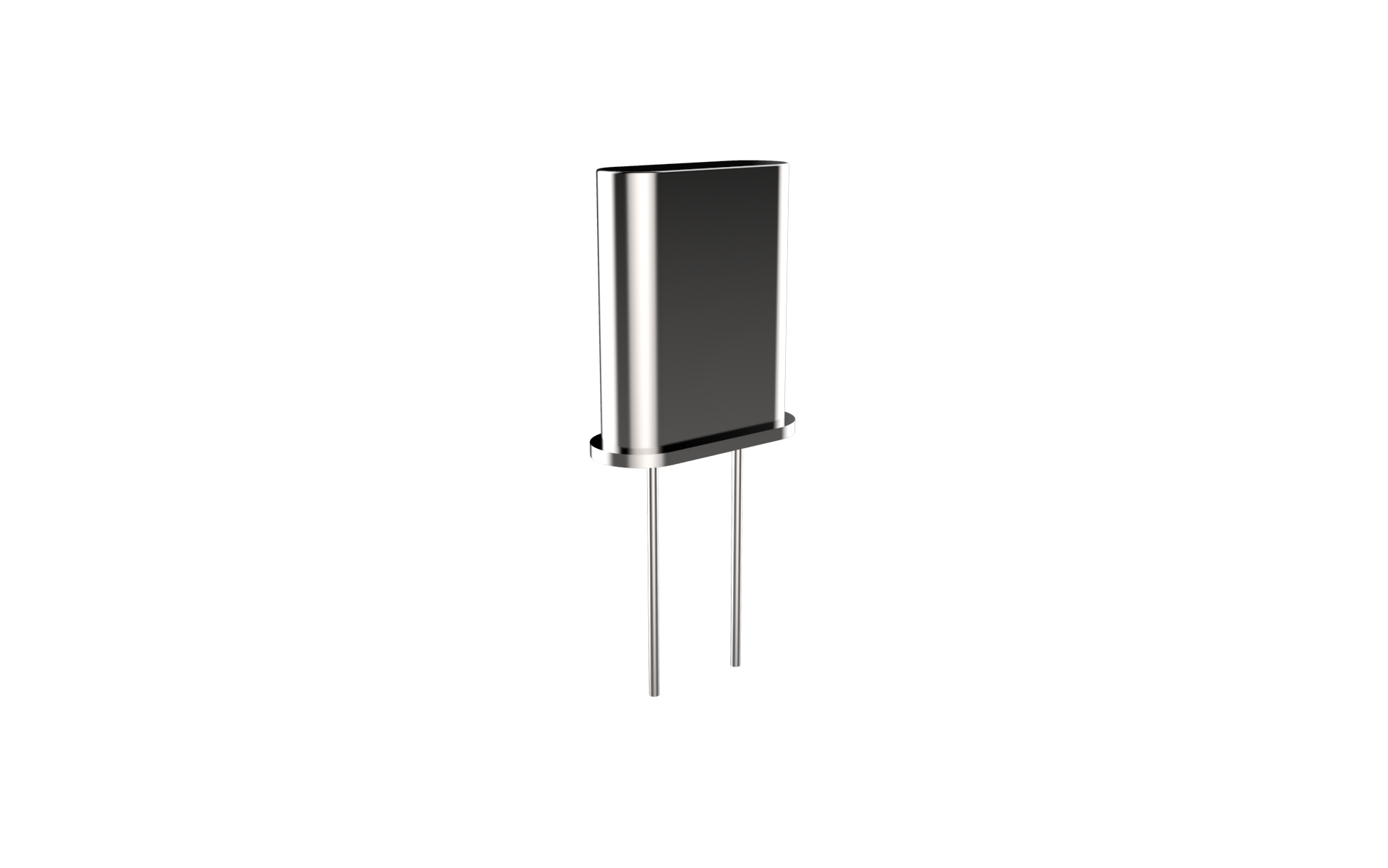

HC-49U | 11.05×4.65×13.46 | 1.843MHz~150MHz | 20pF | 30ppm | 60Ω | 100uW | -20~+70℃ | RoHS Compliant | |
 |
SMD 1612 | 1.6×1.2×0.35 | 24MHz~54MHz | 20pF | 20ppm | 80Ω | 50uW | -20~+70℃ | RoHS Compliant | |
 |
SMD 2016 | 2.0×1.6×0.35 | 16MHz~54MHz | 10pF | 20ppm | 100Ω | 50uW | -20~+70℃ | RoHS Compliant | |
 |
SMD 2520 | 2.5×2.0×0.55 | 12MHz~54MHz | 12pF | 30ppm | 100Ω | 100uW | -20~+70℃ | RoHS Compliant | |
|

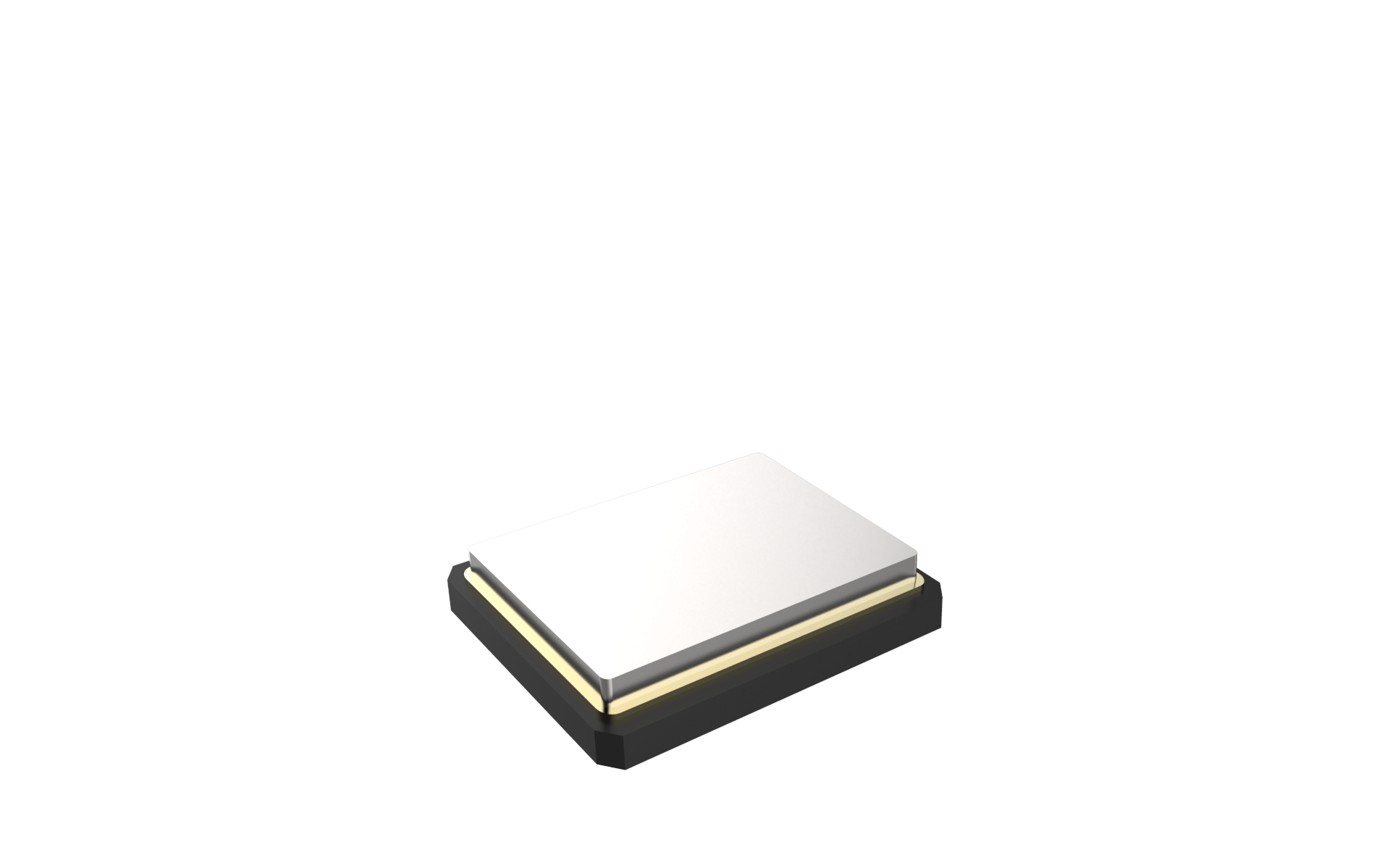

SMD 3225 | 3.2×2.5×0.70 | 10MHz~64MHz | 20pF | 10ppm | 80Ω | 100uW | -40~+85℃ | RoHS Compliant | |
 |

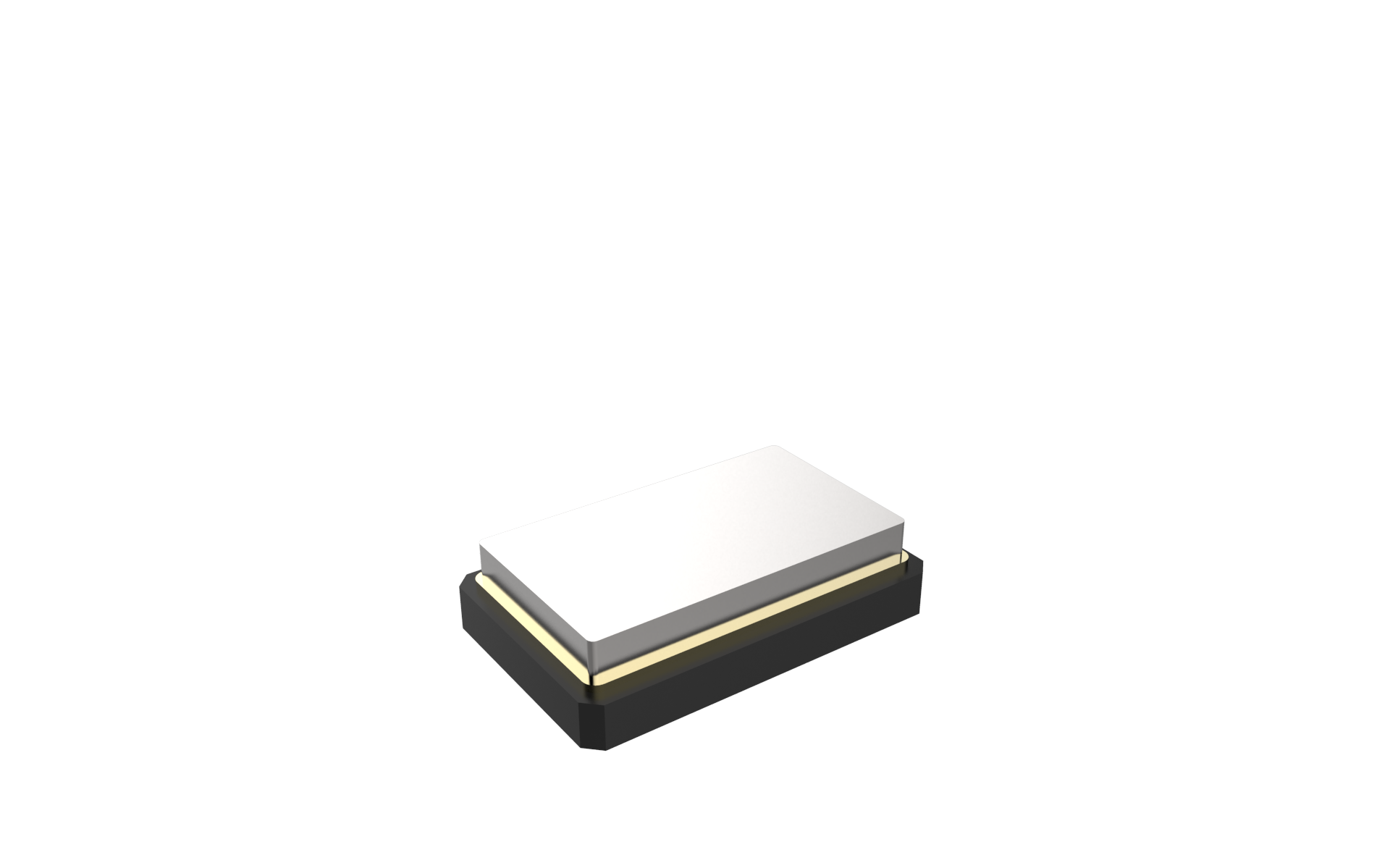

SMD 5032 | 5.0*3.2*0.9 | 8.000~48MHZ | 20pF | 20ppm | 80Ω | 100uW | -40~+85℃ | RoHS Compliant |
